High Strength Cementing Float Shoe for Oil Gas Well Drilling

high strength cementing float shoe

oil gas well drilling float shoe

cementing float equipment with warranty

Lugar de origem:

China

contacte-nos

Peça umas citações

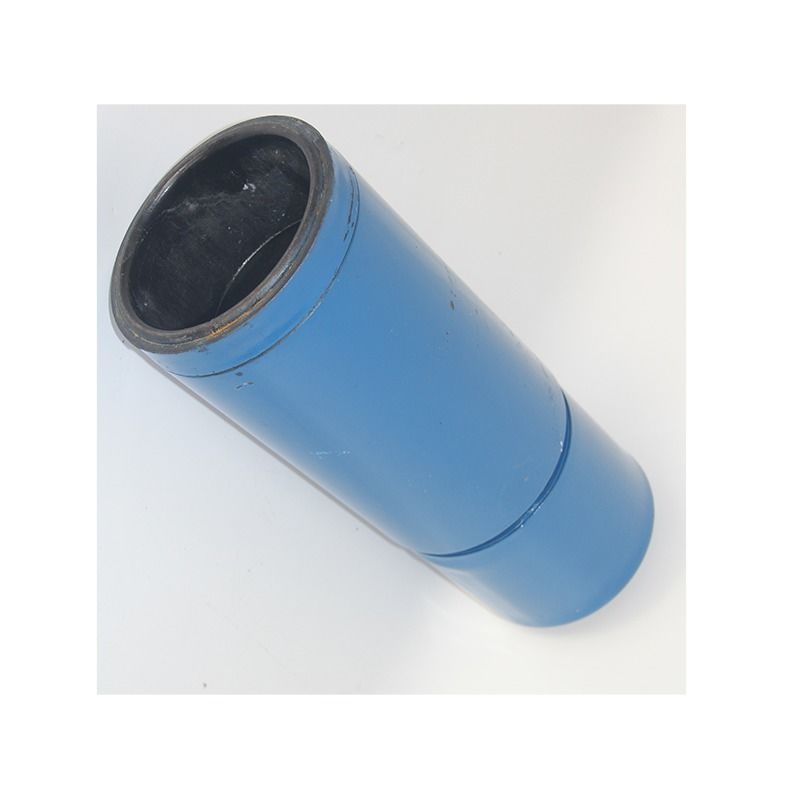

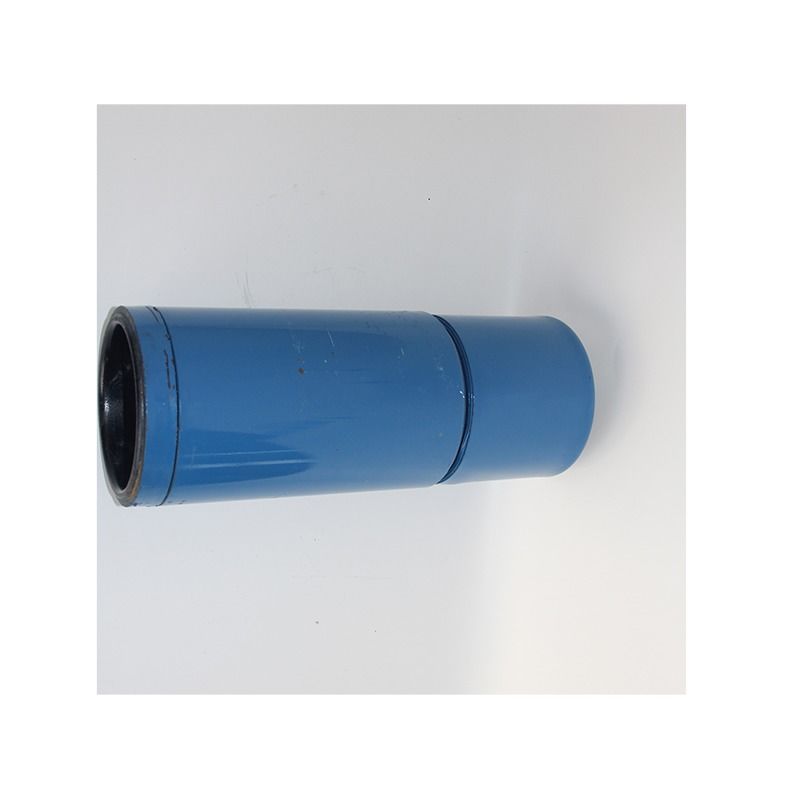

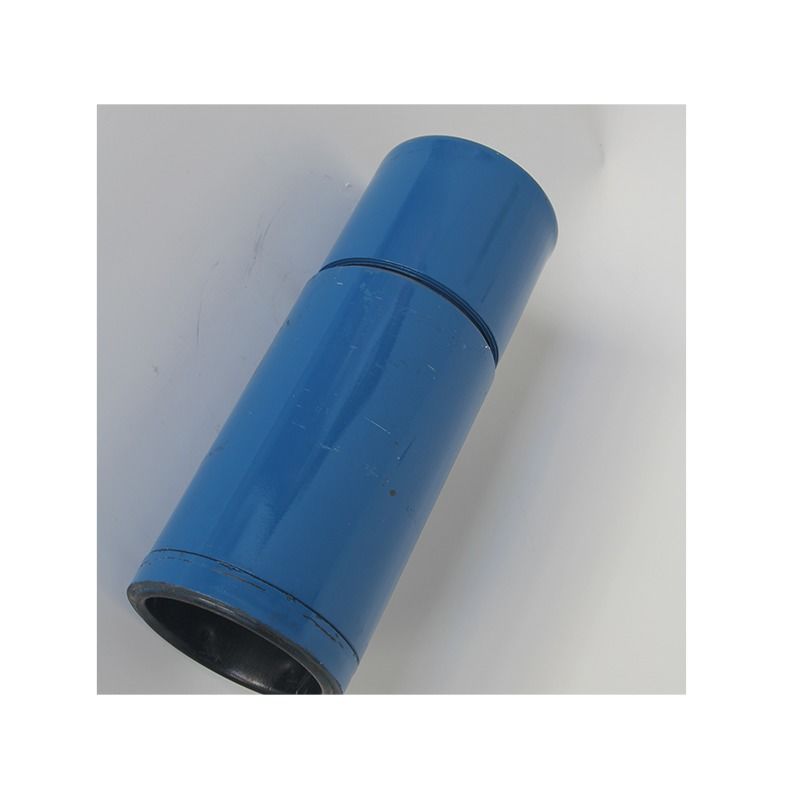

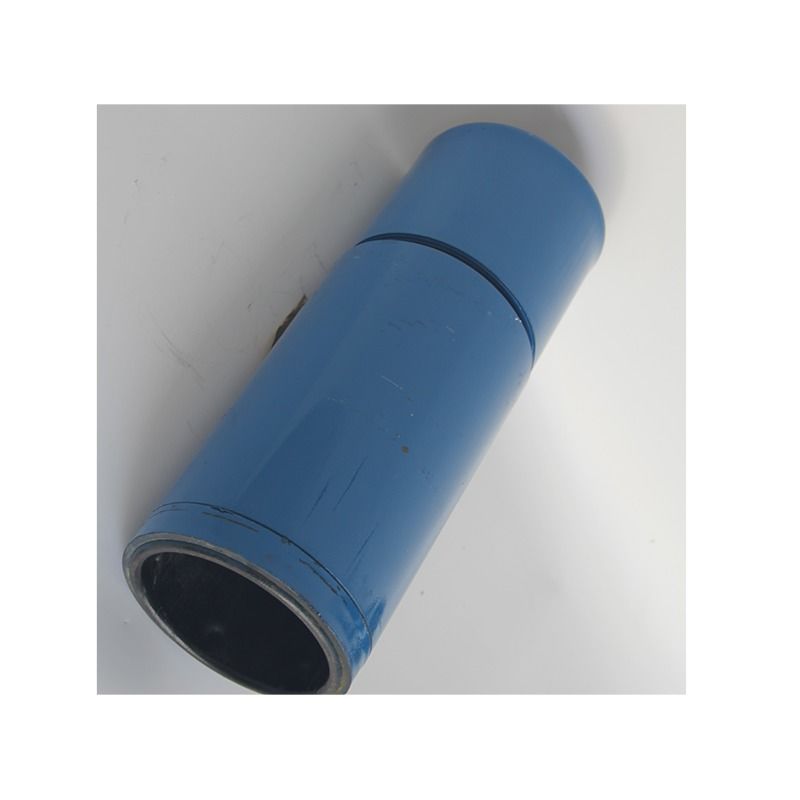

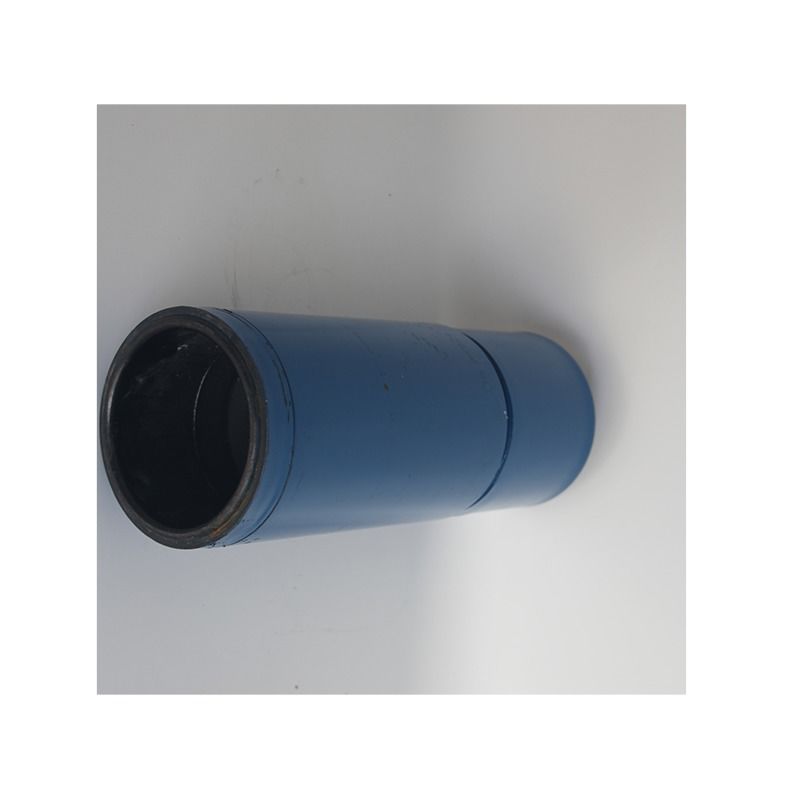

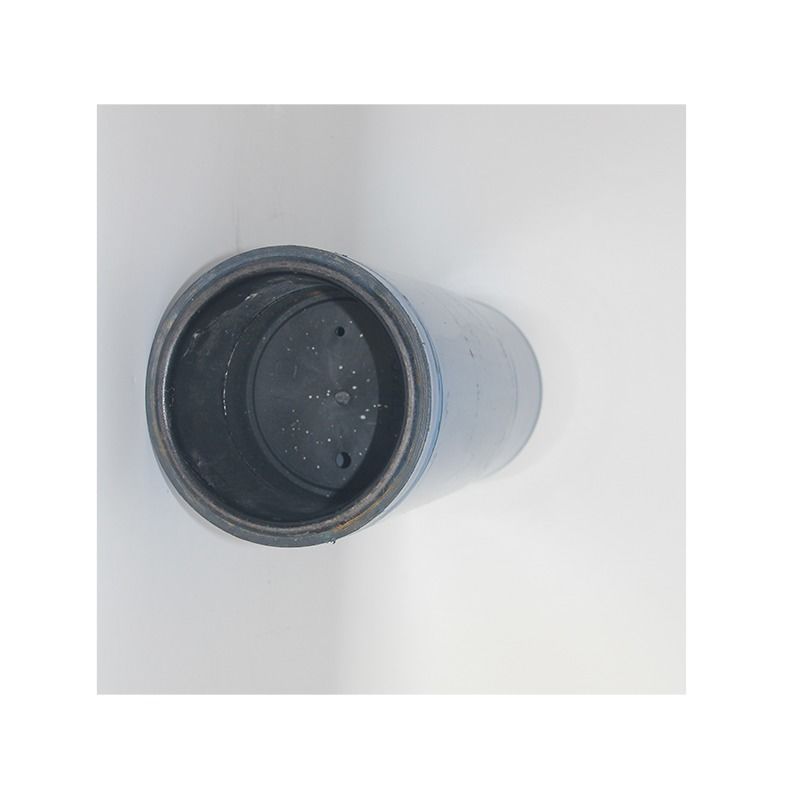

High Strength Cementing Float Shoe for Oil Gas Well Drilling

Detalhes do produto

Peso:

100 kg

Componentes principais:

Válvula

Tipo de válvula:

Válvula única e válvula dupla

Tipo de máquina:

Ferramenta de perfuração

Tipo de processamento:

Forjamento

Tamanho do colar de flutuação:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Float Collar Bore Od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID do furo de colarinho de flutuação:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float Collar Min Bore:

2 ", 2 3/8"

Tipo de rosca de colarinho float:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Pressão do colar da flutuação:

4351, 3626 lb (IN2)

Tamanho do sapato flutuante:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Float Shoe Bore OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID do furo de sapatos flutuantes:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float sapato min furo:

2 ", 2 3/8"

Produtos relacionados

LTC 5-1/2 N80 Cementamento de Noso de Bala Pato Flutuante para poço de petróleo ou poço de gás

Obtenha o melhor preço

LTC 5-1/2 N80 Cimento Reamer Float Shoe para poço de petróleo ou poço de gás

Obtenha o melhor preço

LTC 5-1/2 N80 Cementamento excêntrico de calça flutuante para poço de petróleo ou poço de gás

Obtenha o melhor preço

LTC 5-1/2 N80 Cementamento de jatos para baixo Calçado flutuante para poço de petróleo ou poço de gás

Obtenha o melhor preço

contacte-nos

86-519-83553967

Leo@service-js.com

86-519-83553967

Contato agora

Descrição do produto

High Strength Precision Engineered Cementing Float Shoe for Oil & Gas Well

Product Attributes

Attribute	Value
Warranty	1 Year
Weight (KG)	100
Core Components	Valve
Valve type	single valve & double valve
Machine Type	Drilling Tool
Processing Type	Forging
Use	Well Drilling
Condition	New
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Applicable Industries	Manufacturing Plant
Showroom Location	None

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
Float Collar	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
Float Collar	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
Float Collar	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
Float Shoe	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
Float Shoe	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
Float Shoe	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
