API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

API standard float collar

oilfield drilling float shoe

cementing float equipment casing

Lugar de origem:

Jiangsu, China

Marca:

SWS

contacte-nos

Peça umas citações

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

Detalhes do produto

Dimensão:

5" - 20"

Peso:

10 kg

Tipo de thread:

STC LTC BTC EUE NUE XC

Material:

Aço carbono/liga de alumínio

Componentes principais:

Válvula

Bore OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Id de furo:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min Fore:

2 ", 2 3/8"

Classificação de pressão:

70MPA

Classificação de temperatura:

204°C

Tamanho da válvula:

70mm, 90mm

Material de vedação:

Hnbr

Material de mola:

Fósforo bronze c510

Capacidade de produção:

≥10000 pcs por mês

MOQ:

Produtos relacionados

HPHT Float Collar for Extreme Conditions, Cement Type with Double Valve System, Oil Drilling Equipment for Deep Wells

Obtenha o melhor preço

Professional Float Shoe and Collar Set for Oilfield Cementing, Dual Valve with Self-Locking Feature, API Certified

Obtenha o melhor preço

Eccentric Float Shoe for Petroleum Industry, Aluminum Core Construction, Oil Drilling Cementing Tool

Obtenha o melhor preço

High Strength Aluminum Float Collar for Petroleum Industry, Self-Locking Mechanism, Oil Drilling Equipment

Obtenha o melhor preço

contacte-nos

86-519-83553967

Leo@service-js.com

86-519-83553967

Contato agora

Descrição do produto

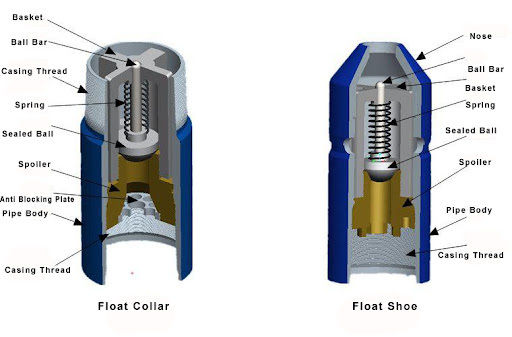

High Quality API Cementing Tools - Casing Float Collar & Float Shoe

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential components for primary cementing operations in oilfield drilling
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal capability

Technical Specifications

Valve body constructed with fiber phenolic material, rated for 70MPa and 204°C seal. Spring components sourced from Canada Victory Spring Company, made from phosphor bronze C510 material for high restoring force and drillability. Plunger seal top molded with HNBR, rated for 70MPa and 204°C operation.

Frequently Asked Questions

When can I get the price?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent pricing requests, please indicate this in your email for priority handling.

Could I have prices of your products?

Yes, please contact us via email for current pricing. We respond to all inquiries within 24 hours.

Can I get a lower price if I order large quantities?

Yes, we offer volume discounts for larger quantity orders.

Do you inspect the finished products?

Yes, our QC department conducts thorough inspections at each production stage and performs final quality checks before shipping.

What about the lead time for mass production?

Production lead times vary based on order quantity and seasonal demand. We provide accurate timelines when processing your order.
