API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API standard float shoes

oilfield drilling float shoes

5-20 inch cementing float equipment

Lugar de origem:

Jiangsu, China

Marca:

SWS

Certificação:

API

contacte-nos

Peça umas citações
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment
Detalhes do produto
Dimensão:
5" - 20"
Peso:
10 kg
Material:
Aço carbono/304 de aço inoxidável
Tipo de thread:
STC LTC BTC EUE NUE XC
Bore OD:
6 ", 7 5/8", 10 5/8 ", 14 3/8"
Id de furo:
4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"
Min Fore:
2 ", 2 3/8"
Classificação de pressão:
4351, 3626 lb/in²
Tamanho da válvula:
70mm, 90mm
Classificação de temperatura:
150 ° C, 204 ° C.
Material de vedação:
Hnbr
Material de mola:
Fósforo bronze c510
Material do corpo da válvula:
fenólica fenólica
Resistência à pressão:
70MPA
Componentes principais:
Aço
Produtos relacionados
Bom preço API Standard 2-3/8

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Obtenha o melhor preço
Bom preço API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment em linha

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Obtenha o melhor preço
Bom preço API Standard Float Collar 5 1/2

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Obtenha o melhor preço
Bom preço API Standard Float Shoes 5-20in for Oilfield Drilling Cementing em linha

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Obtenha o melhor preço
contacte-nos
86-519-83553967
Leo@service-js.com
86-519-83553967
Contato agora
Descrição do produto
Hot Product API Cementing Tools - Float Collar, Float Shoe & Guiding Shoe
Company Profile
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 0
Product Description

Float equipment serves as essential components in casing equipment for primary cementing operations. These precision tools guide the casing to total depth while preventing contaminated mud from entering the casing string.

Key functions and benefits:

  • Provides landing point for casing wiper plugs
  • Reinforces the lower end of casing strings
  • Ensures accurate cement slurry displacement
  • Features Hi Flow valves to minimize fluid erosion and pressure drop
Technical Specifications

Available in two valve sizes: 70mm and 90mm

Material specifications:

  • Valve components: PDC drillable composite plastic
  • Standard seal rating: 150°C (204°C optional)
  • Valve body: Fibre phenolic, rated for 70MPa and 204°C
  • Spring: Canadian phosphor bronze C510 material with high restoring force
  • Plunger seal: HNBR material rated for 70MPa and 204°C
Product Images

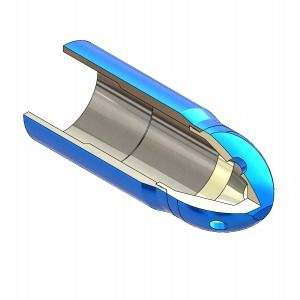

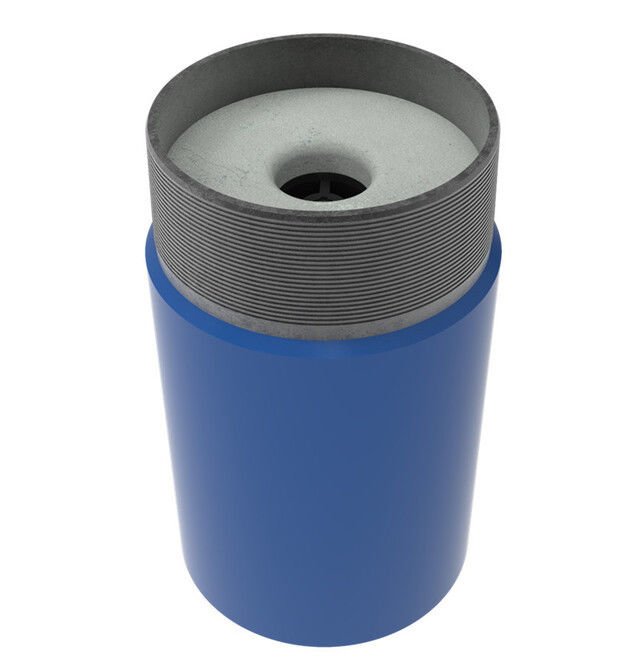

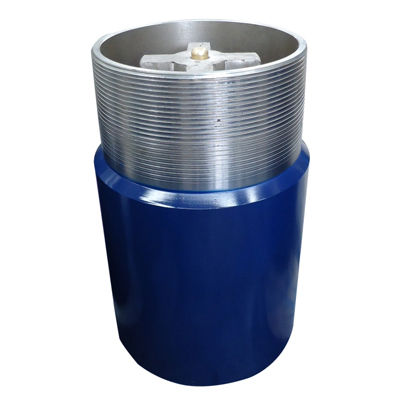

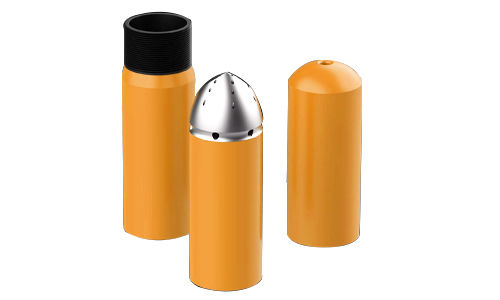

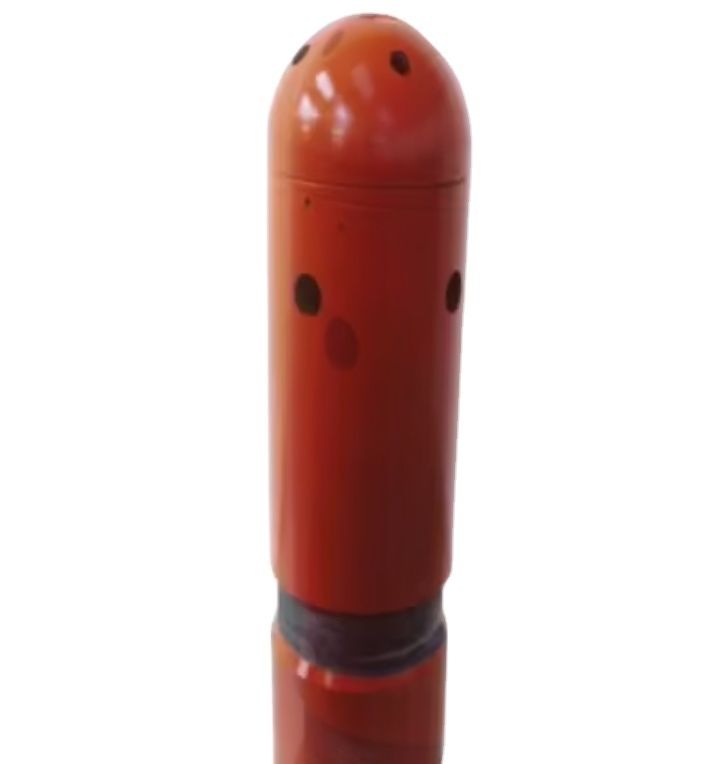

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 1 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 2 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 3 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 4 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 5 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 6 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 7
Technical Specifications
Name Size (in) Bore O.D. (in) Bore I.D. (in) Min Bore Parameter (in) Thread Type lb/in²
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Our Manufacturing Facility
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 8
Device Images
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 9
Industry Exhibitions
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 10
Quality Certifications
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 11
Product Packaging
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 12
Frequently Asked Questions
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 13
Q1: When can I get the price?
A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours with detailed pricing information.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer volume discounts. Larger quantity orders qualify for progressively better pricing.
Q4: Do you inspect the finished products?
A: Yes, our QC department conducts thorough inspections at every production stage and performs final quality checks before shipping.
Q5: What about the lead time for mass production?
A: Lead times vary based on order quantity and seasonal demand. We'll provide an accurate production timeline when we receive your specific requirements.
