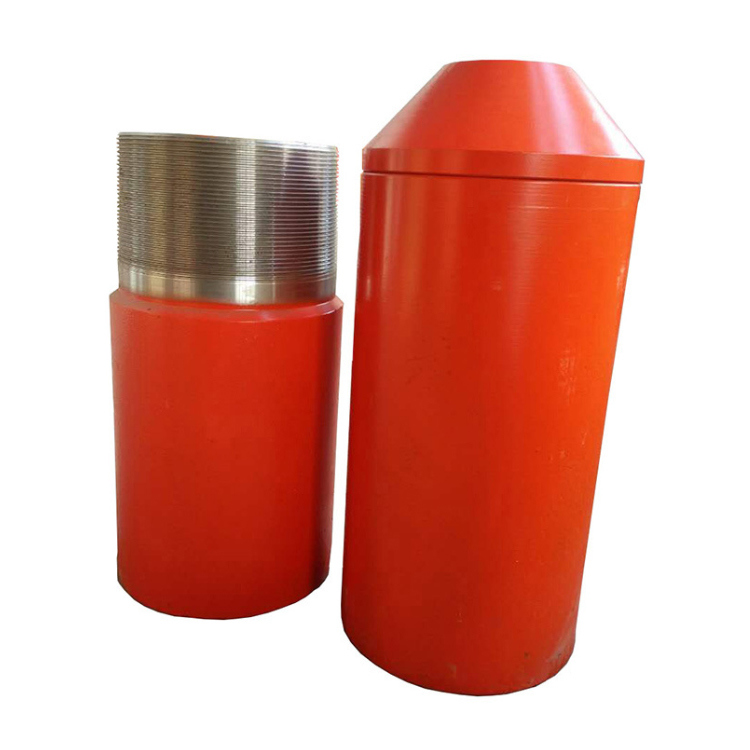

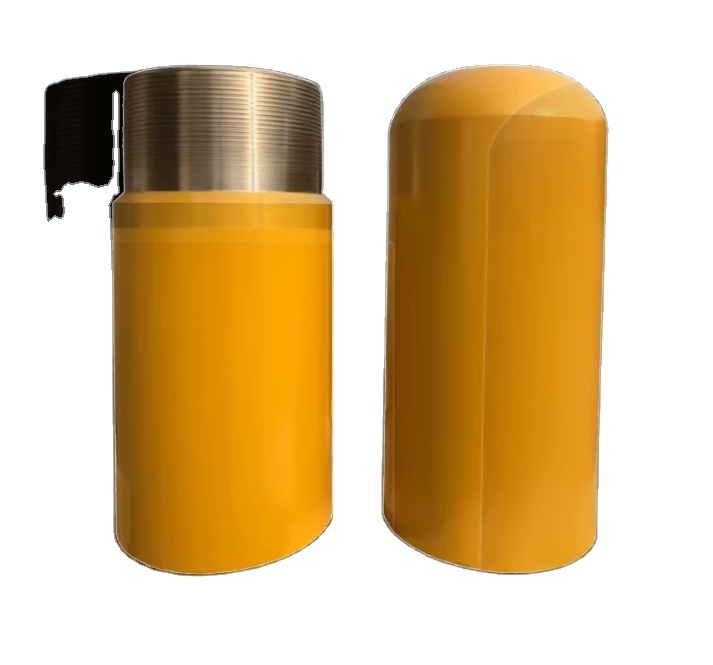

ISO API N80 Float Shoe with Carbon Steel or 304 Stainless Steel Construction and 1 Year Warranty for Well Drilling

Carbon Steel Float Shoe

304 Stainless Steel Float Shoe

1 Year Warranty Float Shoe

Lugar de origem:

CHINA

Certificação:

API ISO

contacte-nos

Peça umas citações

ISO API N80 Float Shoe with Carbon Steel or 304 Stainless Steel Construction and 1 Year Warranty for Well Drilling

Detalhes do produto

Peso:

5 kg

Tipo de válvula:

Válvula única e válvula dupla

Tipo de máquina:

Ferramenta de perfuração

Tipo de processamento:

Forjamento

Material:

Aço carbono/304 de aço inoxidável

Tamanho:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Bore OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Id de furo:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min Fore:

2 ", 2 3/8"

Tipo de thread:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Classificação de pressão:

4351, 3626 lb/in2

Componentes principais:

Válvula

MOQ:

1 conjunto

Uso:

Equipamento de furo do campo petrolífero

Indústrias aplicáveis:

Energia e mineração

Produtos relacionados

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

Obtenha o melhor preço

159.5 mm Bevel Diameter 3.18:1 Bending Strength Ratio 9150 or 9450 mm Length Drill Collar

Obtenha o melhor preço

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

Obtenha o melhor preço

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

Obtenha o melhor preço

contacte-nos

86-519-83553967

Leo@service-js.com

86-519-83553967

Contato agora

Descrição do produto

ISO API N80 BTC/LTC Squagging Cementing Float Shoe with Single or Double Valve

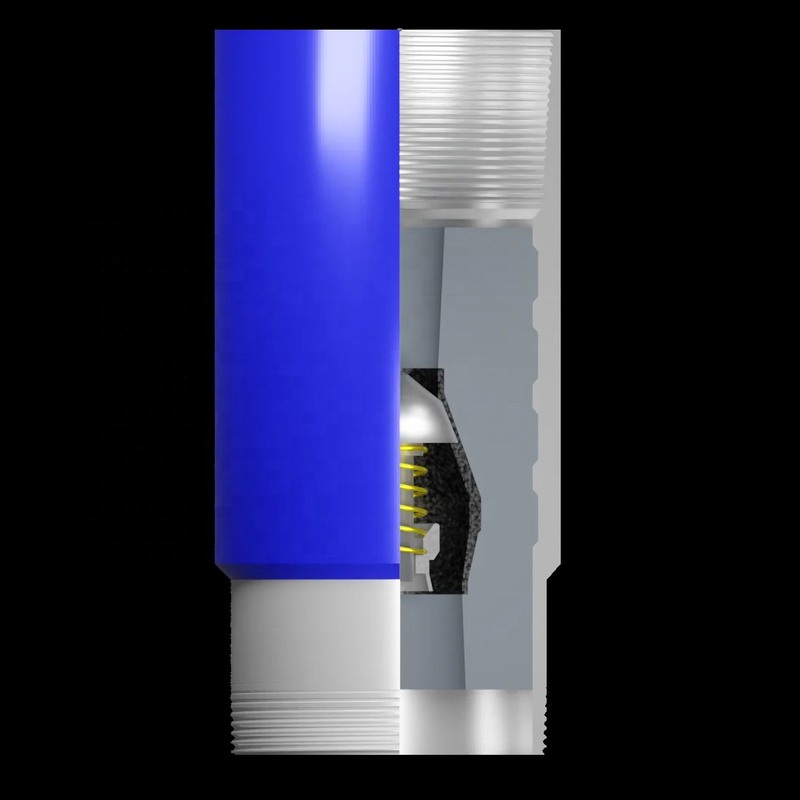

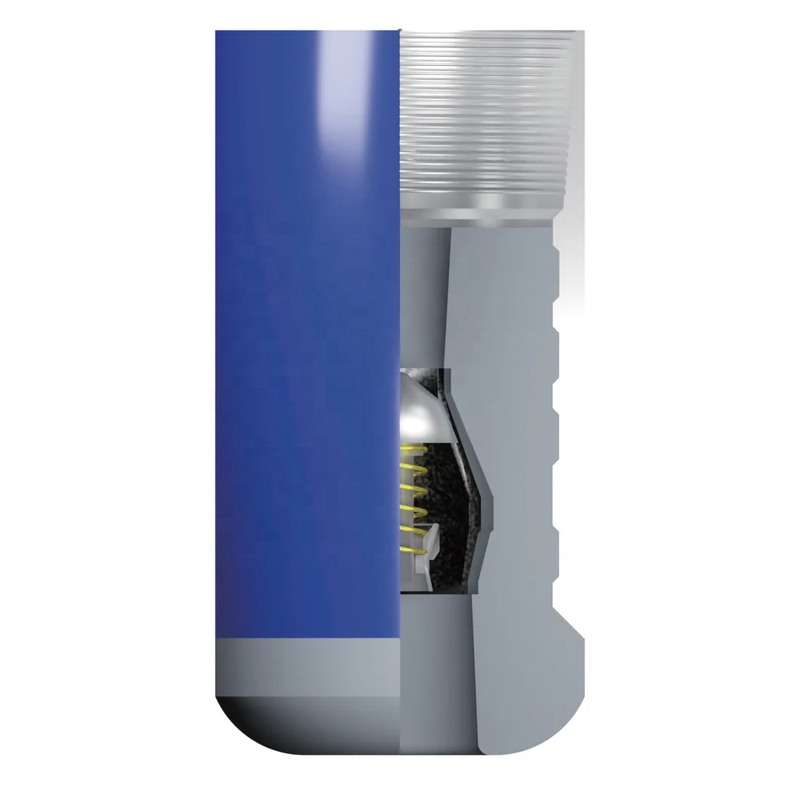

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season when you place the order.
