API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

114.3mm Float Shoe

150°C Seal Float Collar

204°C Seal Cementing Float Equipment

Lugar de origem:

Jiangsu, China

Marca:

SWS

contacte-nos

Peça umas citações

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Detalhes do produto

Dimensão:

50*30*30

Peso:

10 kg

Componentes principais:

Válvula

Tipo de válvula:

Válvula única e válvula dupla

Tipo de processamento:

Forjamento

Especificação:

2-3/8 ~ 20"

Tipo de thread:

BTC\LTC\ Filtro especial\EU\NU

Grau de aço:

N80\L80\P110

Bore OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Id de furo:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min Fore:

2 ", 2 3/8"

Tipo de thread:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Classificação de pressão:

70MPA

Classificação de temperatura:

204°C

Tamanho da válvula:

70 mm e 90mm

Produtos relacionados

API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

Obtenha o melhor preço

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Obtenha o melhor preço

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Obtenha o melhor preço

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Obtenha o melhor preço

contacte-nos

86-519-83553967

Leo@service-js.com

86-519-83553967

Contato agora

Descrição do produto

API 4-1/2" 114.3mm Standard Nose Float Shoe Equipment

High-performance reamer shoe, float shoe, and float collar for casing operations.

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential component for primary cementing operations in casing equipment
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for enhanced structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal available
Fiber phenolic valve body module withstands 70MPa and 204°C
High-quality Canadian phosphor bronze C510 springs with excellent restoring force
HNBR plunger seal top rated for 70MPa and 204°C operation

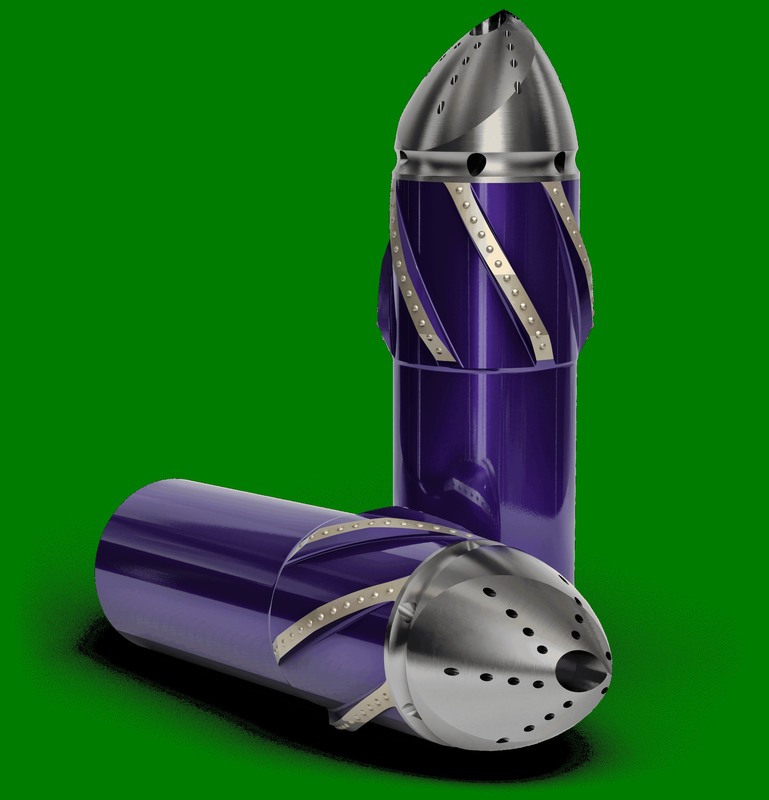

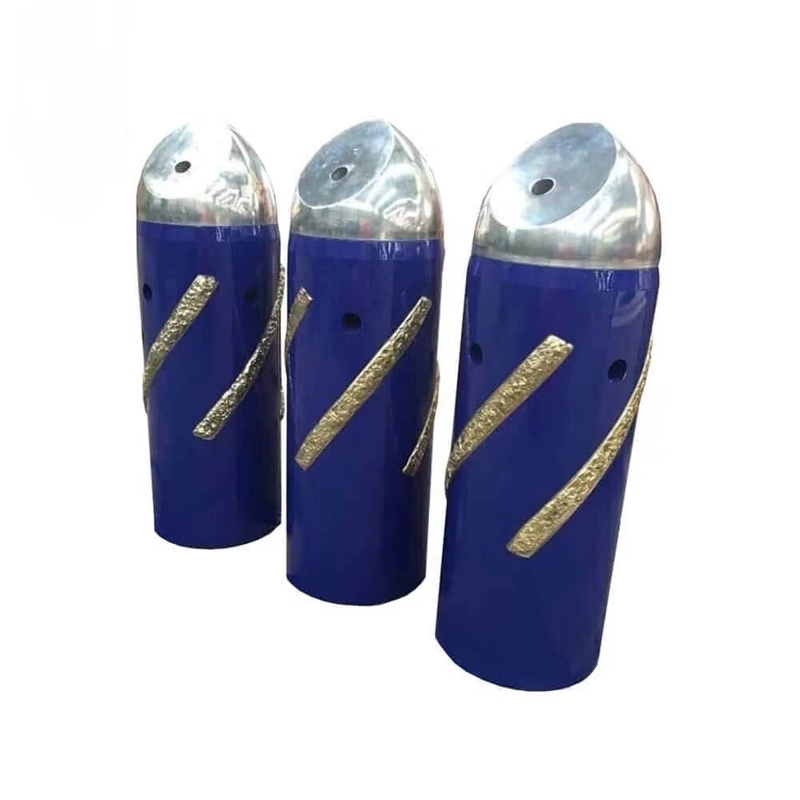

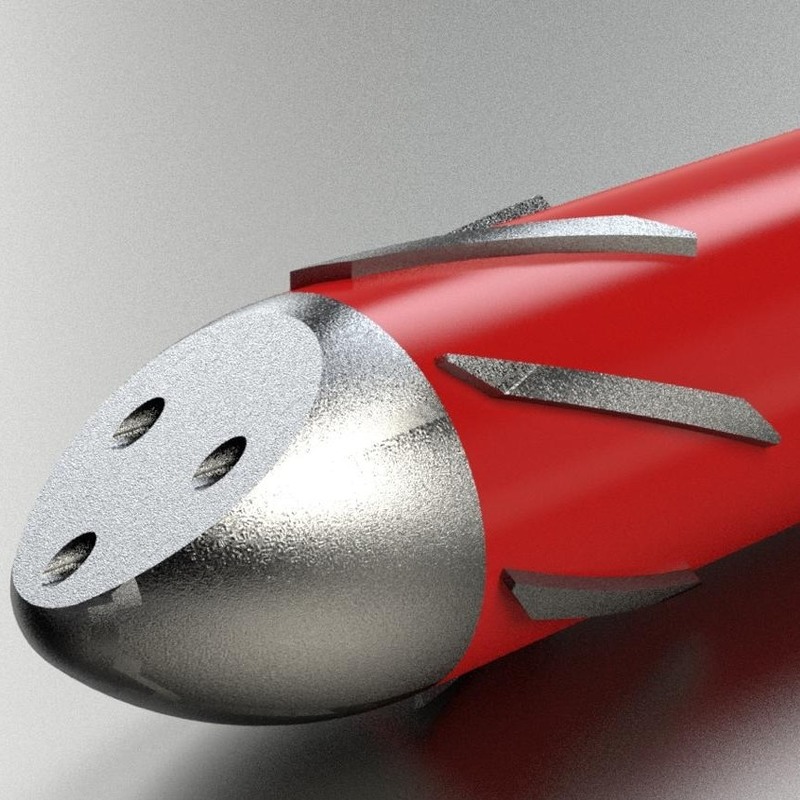

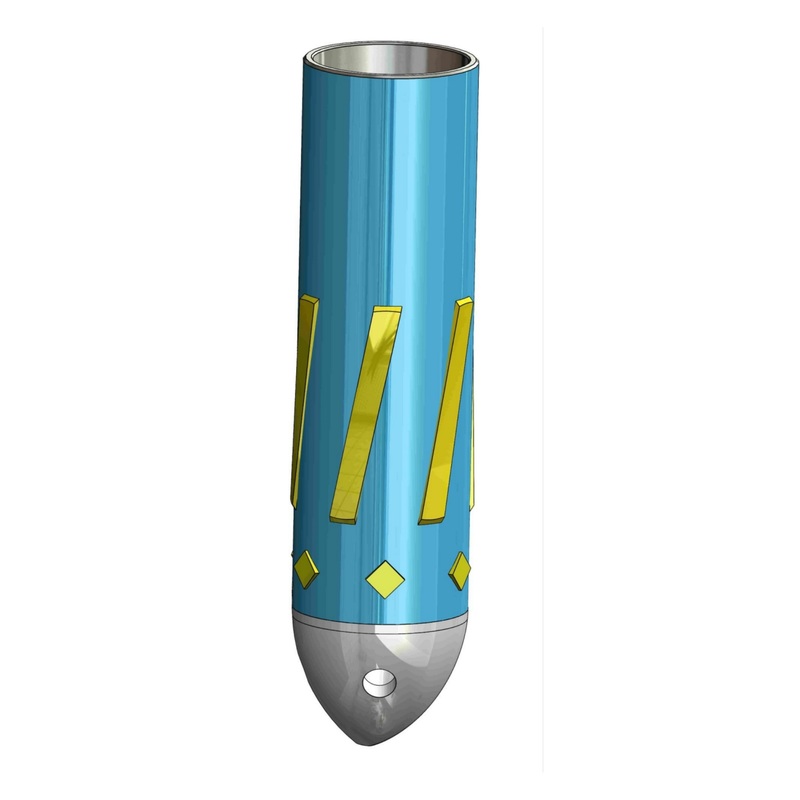

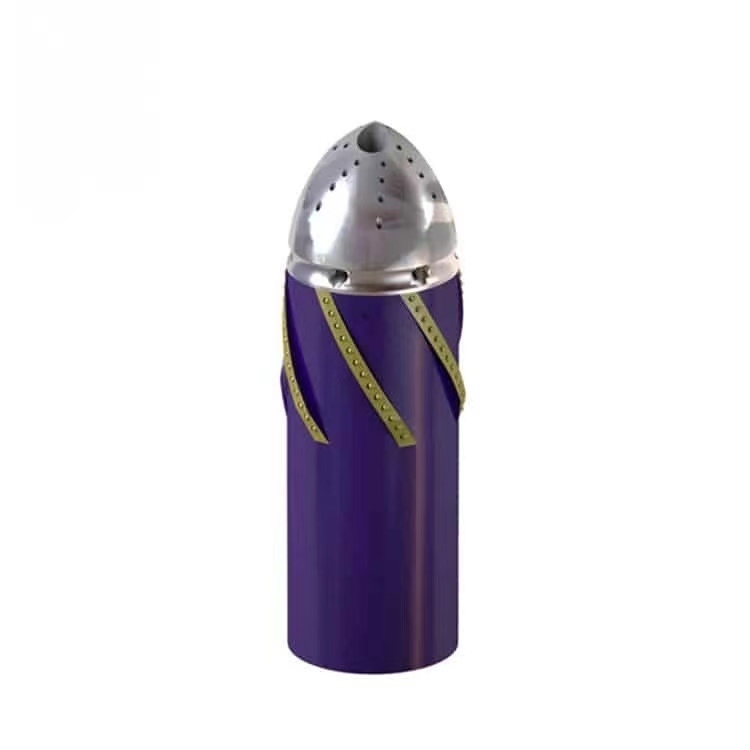

Product Images
